Events and actions reference

The Interactions tab offers ten events and twelve actions; this page lists each one with its parameters and the rules the panel does not show. For when events fire, the order actions run in and which layers an action can target, see How interactions run. Also called: triggers (events), breakpoints (size range events), navigation, overlay or modal, conditional logic (actions).

Events

Where: Interactions tab → the + button (tooltip Add event).

Event	Fires when	Options
Click	The viewer clicks or taps the layer	—
Double Click	The viewer double-clicks the layer	—
Check	The viewer clicks an instance whose component has the Checkbox behavior	State
Toggle	The viewer clicks an instance whose component has the Toggle behavior	State
Pointer Enter	The pointer moves onto the layer	—
Pointer Leave	The pointer moves off the layer	—
Pointer Down	A press begins on the layer	—
Pointer Up	A press is released on the layer	—
Size Enters Range	The layer's width or height comes into the range, or starts inside it	Property, From, To
Size Exits Range	The layer's width or height leaves the range, or starts outside it	Property, From, To

There are no keyboard, focus, timer or page-load events. Which events also reach the parent layers is covered in How interactions run.

Size Enters Range and Size Exits Range

Also called: breakpoints.

• Type infinity into To for a range without an upper end.
• The size is the layer's own, not the viewport's. The displayed artboard takes the viewport's size, so put the event on the artboard to react to the viewport.
• A layer that layout sizes is measured as rendered, so its events follow viewport resizing and reflow: a Flex or Grid item set to Fill, a layer anchored Left + Right, Top + Bottom or Scale, and a Flex or Grid container set to Hug content.
• Any other layer is measured at the size set in the editor plus the session's changes to it, such as Resize actions and Resizable gestures. Content alone does not count: a text layer that grows after a Set Text action reports its earlier size.
• From is inclusive and To is exclusive: a width of 600 is outside 0–600 and inside 600–infinity, so adjacent ranges share a boundary number.
• Both events also fire for the starting state — on load, and again each time the layer's artboard is shown: Size Enters Range if the size is already inside the range, Size Exits Range if it is already outside. After that each fires only when the size crosses a boundary.
• A new event starts at Width, 0 to infinity. Left like that, Size Enters Range fires for the starting state only — the way to run actions on load.

Check and Toggle

• The Add event menu lists Check and Toggle only when the selected layer is an instance, so add them on the instance. The item is disabled when the instance's component has a different behavior.
• Check comes from the Checkbox behavior and Toggle from the Toggle behavior. Radio button, Button and Input dispatch neither (→ Component behaviors).
• State compares against the state the click produced: Checked fires when the click checks the instance.
• They fire only for a viewer's click — not for the starting state and not when a Reset action restores it.
• When the component's behavior changes later, existing Check and Toggle events stay in the list with a warning icon and never fire.

Actions

Where: Interactions tab → Add Action under an event, or under Then / Else in a Conditional.

Action	What it does
Go To Artboard	Shows another artboard of the same page, with an optional transition
Open Modal	Shows an artboard or an instance over the current artboard
Close Modal	Closes the most recently opened modal
Open URL	Opens a web address in a new browser tab
Set Text	Replaces the content of a text layer
Change Visibility	Shows, hides or toggles a layer
Resize	Sets or offsets a layer's width and height, instantly or animated
Reset	Clears the session's changes on one layer
Set Component Variant	Switches an instance to another variant of its component set
Set Component Input	Assigns a value to one input of an instance
Set Variable	Assigns a value, or the result of an expression, to a value variable
Conditional	Evaluates an expression and runs one of two nested action lists

Everything an action changes lasts for the viewer's session and is never written to the document (→ Variables in preview). Which layers a Target field lists is covered in How interactions run.

Go To Artboard

Target lists the other artboards on the same page.

Transition	What moves
Instant	Nothing; the artboards are swapped
Crossfade	The current artboard fades out while the new one fades in
Slide Over	The new artboard slides in above the current one
Slide Out	The current artboard slides away and uncovers the new one beneath
Push	Both move: the new artboard pushes the current one out

• Direction is the direction of travel: with Left, the new artboard enters from the right edge.
• Easing None animates the same as Linear. This also applies to Resize.
• The new artboard is shown at the current viewport size, not at the size it has on the canvas.
• The next action does not wait for the transition to finish (→ How interactions run).

Open Modal

• Target — another artboard on the same page, or an instance placed directly on the page.
• Close on click outside — closes the modal on a click on the backdrop itself, not on a click inside the modal.
• The modal is centered over the current artboard on a dimmed backdrop. Several modals can be open at once; Esc closes the most recently opened one.

Close Modal

No parameters. It does nothing when no modal is open.

Open URL

URL is literal text, not an expression. The address always opens in a new browser tab.

Set Text

Target lists text layers only. Content is literal text, not an expression.

Change Visibility

Target and Type; no rules beyond what the panel shows.

Resize

• Type — Absolute sets the size, Relative adds to the current size (a negative number shrinks, and repeated runs add up).
• Width, Height — leave a field empty, showing (No change), to keep that dimension. Transition is Instant or Animated.
• When the action fills in Width, the editor changes the target's layout settings so that the width can be set:
  • A Flex or Grid item whose horizontal sizing is Fill or Hug content is switched to Fixed.
  • Otherwise, a target whose horizontal anchoring is Left + Right or Scale is switched to Left.
• Height does the same on the vertical axis: Fixed, or Top in place of Top + Bottom or Scale.
• The check runs when you edit the events of the layer that holds the action, not when the target's sizing or anchoring changes later.

Reset

• Target — the only parameter.
• Clears the session's changes on that layer — size, visibility, text, variant, input values, drag and resize results — but not on the layers inside it.
• On an instance it also returns the component behavior to its starting state (a checkbox returns to its Checked value) and clears the overrides that a variant switch carried onto the instance's children.
• It never touches variables, Sortable order (→ Draggable, Resizable and Sortable objects), or pan and scroll position (→ Scrolling in preview).
• To restore variables, add Set Variable actions that assign the starting values.

Set Component Variant

• Target — an instance of a component set. Change to — the variant to show. Resize to variant size — the instance takes the new variant's size.
• Picking a Target fills in the other two: Change to with the instance's current variant, and Resize to variant size on when the instance still follows its component's size, off when it was resized.
• When the component set has a behavior, Change to leaves out the state variants such as :hover or :checked; the behavior switches those.
• The switch is instant.
• Overrides and session changes on the instance's layers are carried over to the new variant (→ Overrides). Afterwards the instance runs the new variant's events (→ How interactions run).

Set Component Input

• Target — an instance. Input — one of its component's inputs. Value — a control that matches the input's type.
• Input lists the inputs that have a row on the instance: those bound to at least one property, plus the built-in inputs (→ Assigning inputs). Slots are never listed.
• Changing Target keeps Input and Value only when the new target is an instance of the same component — in a component set, of the same variant.
• The value applies on top of the one assigned on the instance until a Reset on that instance or a reload.

Set Variable

• Variable — value variables only; expression variables are never listed (→ Value and expression variables).
• Value — a control that matches the variable's type. The ƒ button (tooltip Switch to expression / Switch to value) swaps it for Expression; switching back restores the earlier value.
• The expression is evaluated every time the action runs, against the session's values at that moment, so count + 1 increments and !open toggles (→ Expressions).
• An expression that fails, or whose result does not match the variable's type, leaves the variable unchanged, and the rest of the action list still runs. An open debug console shows a warning (→ Errors).
• Deleting the variable or switching it to an expression empties Variable (→ Changing or deleting a variable).

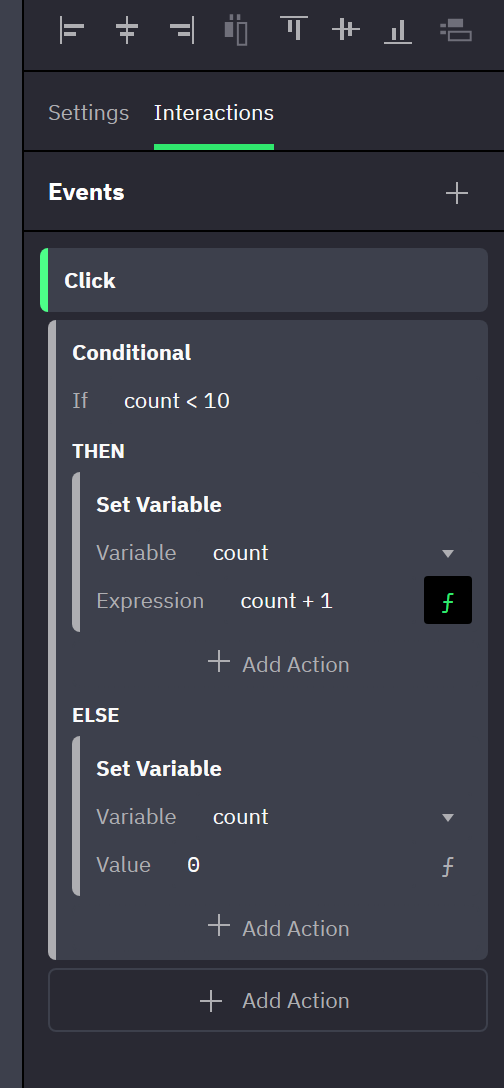

Conditional

• If — an expression (→ What you can write). Then, Else — two action lists, each with its own Add Action.
• A truthy result runs Then; false, 0, "" and null run Else.
• An empty If, or one that fails, runs neither list; a failure shows as a warning in an open debug console.
• Both lists take any action, further Conditional actions included. Actions below the Conditional in the same event run in every case.
• The condition is evaluated when the action runs, not again when the variables change later.
